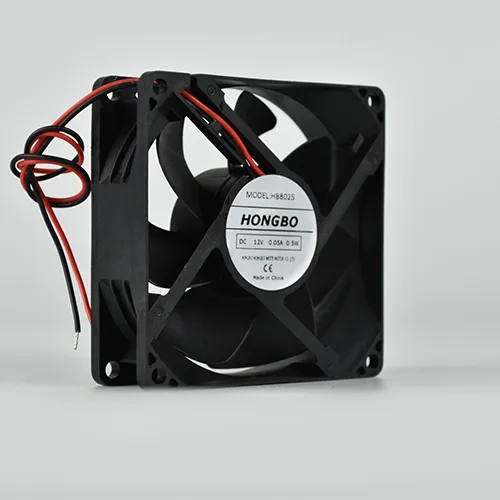

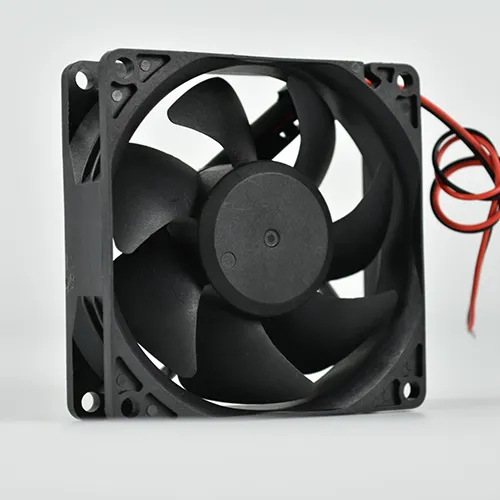

80×80×25mm DC Axial Fan | 8025 DC Cooling Fan for Industrial Equipment
The Hongbo 80×80×25mm DC axial fan is a compact brushless cooling fan designed for use in DC-powered industrial and electronic equipment. This 80mm DC axial fan is available in 12V, 24V, and 48V configurations, making it compatible with a wide range of embedded systems, control electronics, and DC power supply units. With a plastic UL94-V0 frame and ball or sleeve bearing options, it delivers reliable airflow in space-constrained installations.
Key Features
- Brushless DC Motor: No brushes or commutator; lower electrical noise and longer operational life compared to brushed DC motors.
- Multi-Voltage DC Operation: Available in 12V, 24V, and 48V rated voltages to match different DC bus standards in industrial and embedded systems.
- Compact 80×80×25mm Form Factor: Fits standard 80mm panel cutouts; suited for rack-mount electronics, embedded controllers, and compact enclosures.
- UL94-V0 Plastic Frame and Impeller: Flame-retardant materials suitable for use inside electronic equipment enclosures.
- Ball Bearing (50,000 hrs) and Sleeve Bearing (30,000 hrs): Ball bearing variant for extended-life applications; sleeve bearing for standard-duty or cost-sensitive deployments.
- Multiple Speed Grades: Available in high, medium, and low speed configurations for balancing airflow and noise levels.
- Operating Temperature -10°C to +70°C: Covers the thermal range of most industrial electronics and control cabinet environments.
Products Categories
Get A Free Quote
Customization Options
Hongbo Motor supports OEM and ODM orders for this 80×80×25mm DC axial fan:
- Voltage: 12V, 24V, 48V; operating voltage range adjustable
- Speed grade: High, medium, low, or ultra-low speed configurations
- Bearing type: Ball bearing or sleeve bearing
- Lead wire: Length, gauge, and connector type (JST, Molex, bare wire, etc.)
- PWM speed control: Available on selected models for variable-speed applications
- Packaging and labeling: Custom branding and packaging for OEM programs
Specifications
| Parameter | Value |
|---|---|
| Size | 80 × 80 × 25 mm |
| Voltage | 12V / 24V / 48V DC |
| Max Airflow | up to 54 CFM (1.53 m³/min) at high speed |
| Frame Material | Plastic, UL94-V0 |
| Impeller Material | Plastic, UL94-V0 |
| Motor Type | Brushless DC motor |
| Bearing Type | Ball bearing / Sleeve bearing |
| Ball Bearing Life | 50,000 hours at 40°C |
| Sleeve Bearing Life | 30,000 hours at 40°C |
| Lead Wire | UL1007 AWG#26 (+Red / −Black) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +70°C |
Applications
This 80mm DC axial fan is widely used in:
- Industrial control electronics: Cools PLCs, HMI units, and embedded controllers inside DC-powered enclosures.
- Telecommunications equipment: Provides forced-air cooling in DC-bus systems such as base station racks and network equipment.
- DC UPS and power supply systems: Manages thermal dissipation in 12V, 24V, and 48V power conversion units.
- Automation and robotics: Used in servo drive enclosures, motion controllers, and I/O modules.
- Medical and laboratory equipment: Deployed in instruments requiring low-voltage, low-interference cooling.
- Computer and server equipment: Standard 80mm fan footprint compatible with common PC and server chassis designs.
Why Choose Hongbo Motor
- Over 10 years of focused experience in industrial cooling fan manufacturing
- Products exported to 40+ countries across North America, South America, Europe, and Asia
- Stable production capacity with consistent lead times
- Strong OEM/ODM capability for volume and custom orders
- Reliable quality backed by international certifications
FAQs
What DC voltages are available for the 80mm fan?
Standard models are available at 12V, 24V, and 48V rated DC voltage. Custom operating voltage ranges are available on request.
What is the difference between ball bearing and sleeve bearing models?
Ball bearing models are rated for 50,000 hours at 40°C and perform better in high-temperature or vertical-shaft installations. Sleeve bearing models are lower cost and suitable for horizontal mounting in standard ambient conditions.
Can PWM speed control be added?
Yes, PWM speed control is available on selected models. Please specify this requirement when submitting your order inquiry.
Do you support OEM orders?
Yes. We support customization of voltage, speed, bearing type, lead wire connector, and packaging. Contact our sales team with your specifications.
What is the minimum order quantity?
MOQ varies by model and configuration. Please contact us directly for details.
Certifications and Quality Assurance
- UL Certification
- CE Certification
- RoHS Compliance
- 3C Certification (China Compulsory Certification)
Manufactured and tested at Hongbo Motor’s 6,000 m² facility in Ningbo, China.
