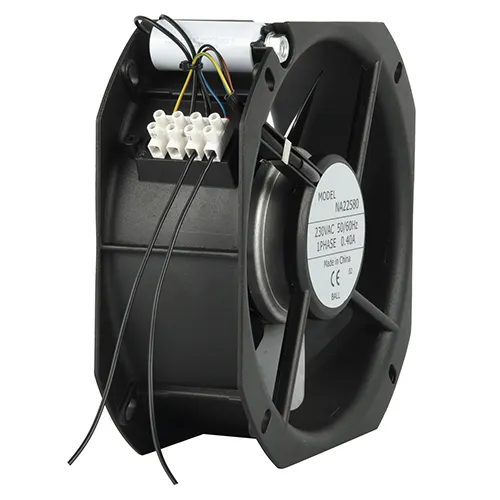

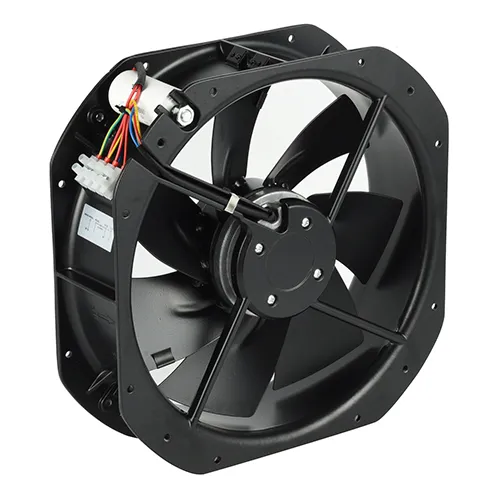

225×225×80mm All Metal AC Axial Fan | Industrial 225mm Cooling Fan
The Hongbo 225×225×80mm All Metal AC axial fan is a heavy-duty industrial fan built for large-scale ventilation and cooling in manufacturing, power, and process equipment. This 225mm axial fan delivers 1,000–1,150 m³/hr (558–676 CFM) through an all-metal iron-leaf impeller and aluminum alloy frame, driven by a capacitor-run external rotor induction motor rated for up to +105°C. It is available in 220V and 380V AC configurations for single-phase and three-phase industrial power systems.
Key Features
- All-Metal Construction: Iron-leaf impeller and aluminum alloy frame provide maximum durability in high-temperature, high-vibration industrial environments.
- High Airflow 1,000–1,150 m³/hr: Delivers industrial-grade volumetric airflow for large enclosures, machinery, and process ventilation requiring continuous high-volume air movement.
- External Rotor Capacitor Motor: Motor integrated into the impeller hub allows compact installation and efficient power transfer with stable torque characteristics.
- High-Temperature Rating up to +105°C: Suitable for environments with elevated ambient temperatures, including furnace peripherals, foundries, and high-load electrical rooms.
- 220V and 380V Availability: Covers single-phase and three-phase industrial power supplies for global deployment.
- Ball Bearing Design: Extended service life under sustained high-speed operation in demanding thermal environments.
- Robust Frame for Demanding Installation: Suitable for bracket, flange, and panel mounting in industrial equipment racks and ventilation systems.
Products Categories
Get A Free Quote
Customization Options
Hongbo Motor supports OEM and ODM orders for this 225×225×80mm All Metal AC axial fan:
- Voltage: 220V, 380V, or dual-voltage; single-phase or three-phase
- Capacitor specification: Matched to voltage and motor configuration
- Lead wire: Length and connector type to specification
- Speed grade: RPM adjustment available for specific airflow requirements
- Mounting: Flange and bracket configurations adaptable for OEM integration
- Packaging and labeling: Custom branding for volume OEM programs
Specifications
| Parameter | Value |
|---|---|
| Size | 225 × 225 × 80 mm |
| Voltage | 220V / 380V AC (50/60Hz) |
| Airflow | 1,000–1,150 m³/hr (558–676 CFM) |
| Speed | 2300–2600 RPM |
| Noise Level | 65–68 dBA |
| Weight | 2,112 g |
| Frame Material | Aluminum alloy |
| Impeller Material | Iron leaf (all-metal) |
| Motor Type | Capacitor-run external rotor induction motor |
| Bearing Type | Ball bearing |
| Operating Temperature | -10°C to +105°C |
Applications
This 225mm axial fan is widely used in:
- Large industrial enclosures and switchgear rooms: Removes heat from high-power electrical distribution equipment operating in confined spaces.
- Power generation and substation ventilation: Provides forced-air cooling for transformer rooms, rectifier banks, and battery charging systems.
- Manufacturing plant cooling: Ventilates production areas with high ambient heat generated by process machinery and furnaces.
- Data center supplemental ventilation: Used for hot-spot cooling and exhaust in server rooms with high rack density.
- HVAC and industrial air handling: Integrated into large duct assemblies and air circulation systems for commercial and industrial buildings.
- Automotive and heavy equipment facilities: Maintains thermal control in paint booths, test cells, and vehicle assembly areas.
Why Choose Hongbo Motor
- Over 10 years of focused experience in industrial cooling fan manufacturing
- Products exported to 40+ countries across North America, South America, Europe, and Asia
- Stable production capacity with consistent lead times
- Strong OEM/ODM capability for volume and custom orders
- Reliable quality backed by international certifications
FAQs
What makes the all-metal construction important for this fan?
The iron-leaf impeller and aluminum alloy frame ensure the fan maintains structural integrity in high-temperature environments where plastic components would degrade, making it suitable for operation up to +105°C.
What is an external rotor motor and why is it used?
An external rotor motor integrates the rotor into the impeller hub, resulting in a more compact assembly with efficient power transfer. It also allows better heat dissipation from the motor windings during continuous operation.
What voltage options are available?
Standard models are available in 220V and 380V AC. Please contact us for dual-voltage or custom configurations.
Do you support OEM orders?
Yes. We support customization of voltage, capacitor, lead wire, mounting, and packaging. Contact our sales team with your specifications and order volume.
What is the minimum order quantity?
MOQ varies by model and configuration. Please contact us directly for details.
Model Parameter
| Model | Bearing System |
Voltage VAC |
Rreq. Hz |
Current A |
Power W |
Speed RPM |
Noise dBA |
Air Flow | Phase | Capcitor | |
| M3/hr | CFM | ||||||||||

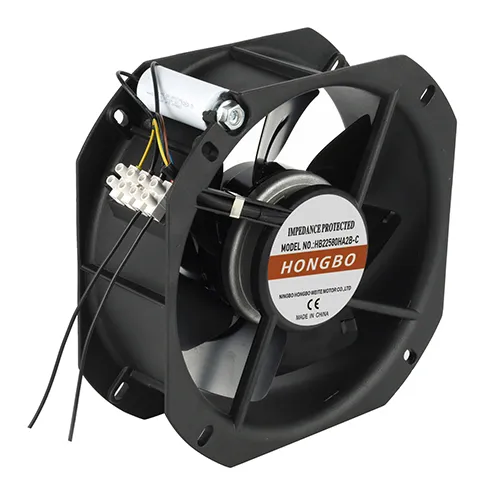

| HB22580HA2B-C-7P | 220V | 50/60 | 0.4 | 80 | 2500/2850 | 63/66 | 1000/1150 | 588/676 | 1 | 2.0uf/500v | |
| HB22580HA3B-7P | 380V | 50/60 | 0.2 | 80 | 2500/2850 | 63/66 | 1000/1150 | 588/676 | 1 | ||
| HB22580HA3B-C-7P | 380V | 50/60 | 0.21 | 80 | 2500/2850 | 63/66 | 1000/1150 | 588/676 | 1 | 0.6uf/800v | |
More Details
Size:225mmx225mmx80mm
Airflow:1000~1290m3/hr
618-760CFM
Weight:2150g
Noise:63~66dBA
Impeller:Iron Leaf
Frame:Aluminum Alloy
Lead Wire:The Mostable Wire
Motor:Capacitor-Run External Rotor
Induction Motor
Operation Temperature:- 10℃~+105℃
Certifications and Quality Assurance
- UL Certification
- CE Certification
- RoHS Compliance
- 3C Certification (China Compulsory Certification)
Manufactured and tested at Hongbo Motor’s 6,000 m² facility in Ningbo, China.
