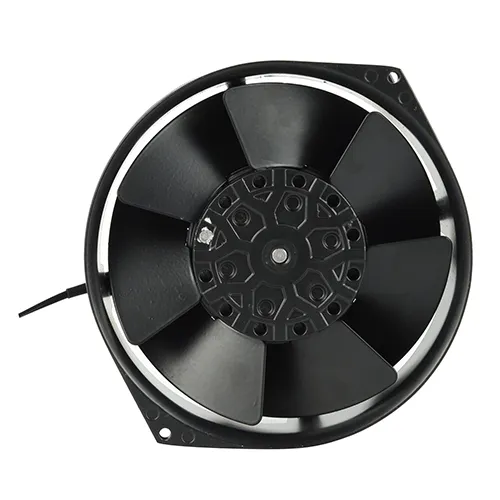

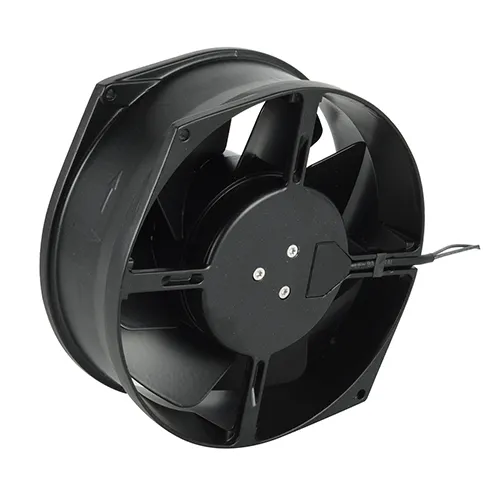

172×150×55mm All Metal AC Axial Fan | Industrial Metal Axial Fan 172mm
The Hongbo 172×150×55mm All Metal AC axial fan is a fully metal-constructed industrial fan built for harsh environments where plastic-frame fans are not suitable. This metal axial fan 172mm uses an aluminum alloy frame paired with a robust impeller assembly, providing superior resistance to heat, mechanical stress, and industrial contaminants. It is suited for high-temperature environments, heavy-duty manufacturing equipment, and applications requiring enhanced structural durability.
Key Features
- All-Metal Construction: Both the frame and impeller housing are metal-built, offering greater durability compared to standard plastic-frame fans in thermally demanding or mechanically stressed environments.
- Aluminum Alloy Frame: Corrosion-resistant and dimensionally stable under prolonged thermal exposure; suitable for flush-panel and bracket mounting in industrial settings.
- 172mm Form Factor with 55mm Depth: Deeper housing than standard 51mm variants provides increased static pressure capability for installations with airflow restriction.
- Shaded Pole Induction Motor: Brushless motor design requires minimal maintenance; suitable for continuous industrial duty cycles.
- Multiple Voltage Options: Available in 110V and 220V AC (50/60Hz); 380V configurations available on request.
- Ball Bearing Design: Supports extended service life in high-temperature and high-duty environments.
- Wide Operating Temperature: Rated for operation in elevated ambient conditions, making it suitable for furnace rooms, foundries, and process equipment.
Products Categories
Get A Free Quote
Customization Options
Hongbo Motor supports OEM and ODM orders for this 172×150×55mm All Metal AC axial fan:
- Voltage: 110V, 220V, 380V, or dual-voltage configurations
- Speed grade: Multiple RPM grades available
- Lead wire: Length, gauge, and connector type to specification
- Mounting: Flange dimensions and hole patterns adjustable for OEM integration
- Surface treatment: Additional protective coating options available for corrosive environments
- Packaging and labeling: Custom branding for OEM programs
Specifications
| Parameter | Value |
|---|---|
| Size | 172 × 150 × 55 mm |
| Voltage | 110V / 220V AC (50/60Hz) |
| Frame Material | Aluminum alloy (all-metal construction) |
| Motor Type | Shaded pole induction motor |
| Bearing Type | Ball bearing |
| Operating Temperature | -10°C to +65°C |
| Airflow | Available in multiple output grades; contact us for specifications |
| Noise Level | Available in multiple grades; contact us for specifications |
Applications
This metal axial fan 172mm is widely used in:
- High-temperature industrial equipment: Suitable where plastic-frame fans risk deformation or failure due to sustained ambient heat.
- Foundry and metalworking environments: Provides ventilation in facilities where airborne particulates or heat make standard fans unsuitable.
- Power generation and UPS systems: Used in transformer ventilation and battery room cooling where fire resistance and structural durability are required.
- Heavy-duty control panels: Ventilates large-format panels in steel mills, mining equipment, and offshore installations.
- Oven and furnace peripheral cooling: Provides cooling air to peripheral electronics in proximity to high-temperature process equipment.
- Marine and outdoor enclosures: Metal construction resists environmental stress in non-climate-controlled installations.
Why Choose Hongbo Motor
- Over 10 years of focused experience in industrial cooling fan manufacturing
- Products exported to 40+ countries across North America, South America, Europe, and Asia
- Stable production capacity with consistent lead times
- Strong OEM/ODM capability for volume and custom orders
- Reliable quality backed by international certifications
FAQs
Why choose an all-metal fan over a plastic-frame fan?
All-metal fans provide higher structural durability in environments with elevated temperatures, vibration, or mechanical stress where plastic frames may warp, crack, or degrade over time.
What is the advantage of the 55mm depth over the standard 51mm?
The deeper housing increases the fan’s static pressure capability, making it more effective in installations with ducting or other airflow restrictions.
What voltage options are available?
Standard models are available in 110V and 220V AC (50/60Hz). 380V configurations and dual-voltage options are available on request.
Do you support OEM orders?
Yes. We support customization of voltage, speed, lead wire, mounting, and packaging. Contact our sales team with your specifications and volume requirements.
What is the minimum order quantity?
MOQ varies by configuration. Please contact us directly for details.
Model Parameter
| Model | Bearing System |
Voltage VAC |
Rreq. Hz |
Current A |
Power W |
Speed RPM |
Noise dBA |
Air Flow | Phase | Capcitor | |
| M3/hr | CFM | ||||||||||
| HB17055HA1 | 100-125 | 50/60 | 0.54 | 36 | 2650/2900 | 52 | 320/400 | 220/263 | 1 | ||
| HB17055HA2 | 200-240 | 50/60 | 0.3 | 36 | 2650/2900 | 52 | 320/400 | 220/263 | 1 | ||
More Details
Size:170mmx150mmx55mm
Airflow:289~900m3/hr
460-240CFM
Weight:1200g
Noise:47~54dBA
Impeller:PBT Thermoplastic Black,UL94-vo
Frame:Aluminum Alloy
Terminals:0.5mm
Lead Wire:A WG#22 UL 1007(Optional)
Motor:Shaded Pole Induction Motor
Operation Temperature:- 10℃~+105℃
Certifications and Quality Assurance
- UL Certification
- CE Certification
- RoHS Compliance
- 3C Certification (China Compulsory Certification)
Manufactured and tested at Hongbo Motor’s 6,000 m² facility in Ningbo, China.
