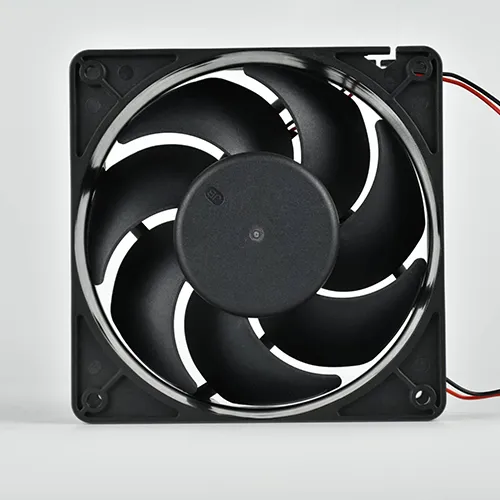

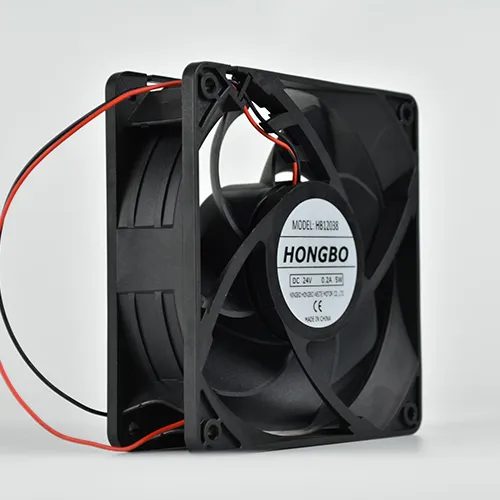

120×120×38mm DC Axial Fan | 12038 DC Cooling Fan for Industrial Systems
The Hongbo 120×120×38mm DC axial fan is a high-capacity brushless fan designed for DC-powered industrial equipment requiring strong forced-air cooling. This 120mm DC axial fan delivers up to 165 CFM (4.67 m³/min) at high speed and is available in 12V, 24V, and 48V configurations. With a UL94-V0 plastic frame, ball and sleeve bearing options, and multiple speed grades, it is suited for demanding industrial electronics, server infrastructure, and large embedded systems.
Key Features
- High Airflow up to 165 CFM: Delivers substantially more airflow than the thinner 25mm profile fans; suited for enclosures with dense component layouts and high heat dissipation.
- Multi-Voltage DC Operation: Available at 12V, 24V, and 48V to align with common industrial DC bus standards and embedded system power rails.
- Brushless DC Motor: Eliminates brush wear; produces lower electrical interference, making it compatible with sensitive electronic environments.
- 38mm Deep Housing: Greater depth provides higher static pressure capability for installations with restricted airflow paths or dense component arrangements.
- UL94-V0 Flame-Retardant Plastics: Both frame and impeller rated UL94-V0 for safe use inside electronic and industrial enclosures.
- Ball Bearing (50,000 hrs) and Sleeve Bearing (30,000 hrs): Ball bearing variant for extended-life applications; sleeve bearing for standard-duty or cost-optimized deployments.
- Multiple Speed Grades: High, medium, and low speed options available to balance airflow output and noise level.
Products Categories
Get A Free Quote
Customization Options
Hongbo Motor supports OEM and ODM orders for this 120×120×38mm DC axial fan:
- Voltage: 12V, 24V, 48V; operating voltage range adjustable
- Speed grade: High, medium, or low speed; custom RPM targets available
- Bearing type: Ball bearing or sleeve bearing
- Lead wire: Length, gauge, and connector type (JST, Molex, bare wire, etc.)
- PWM or tachometer signal: Available on selected models for speed monitoring or variable-speed control
- Packaging and labeling: Custom branding and packaging for OEM programs
Specifications
| Parameter | Value |
|---|---|
| Size | 120 × 120 × 38 mm |
| Voltage | 12V / 24V / 48V DC |
| Max Airflow | up to 165 CFM (4.67 m³/min) at high speed |
| Frame Material | Plastic, UL94-V0 |
| Impeller Material | Plastic, UL94-V0 |
| Motor Type | Brushless DC motor |
| Bearing Type | Ball bearing / Sleeve bearing |
| Ball Bearing Life | 50,000 hours at 40°C |
| Sleeve Bearing Life | 30,000 hours at 40°C |
| Lead Wire | UL1007 AWG#24 (+Red / −Black) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +70°C |
Applications
This 120mm DC axial fan is widely used in:
- Industrial automation controllers: Cools high-density control racks with multiple DC-powered boards and drives.
- Telecommunications and networking equipment: Provides reliable airflow in 12V or 48V DC-bus telecom chassis and network switches.
- DC power supply and battery systems: Manages thermal output in 24V and 48V battery management systems and DC/DC converters.
- Server and data center infrastructure: Compatible with standard 120mm server fan mounting positions; available in 12V for direct motherboard or fan controller integration.
- Embedded industrial computers: Deployed in ruggedized computing platforms requiring reliable DC-powered airflow management.
- Laser and medical equipment: Used in equipment that requires precise thermal management with low electrical interference.
Why Choose Hongbo Motor
- Over 10 years of focused experience in industrial cooling fan manufacturing
- Products exported to 40+ countries across North America, South America, Europe, and Asia
- Stable production capacity with consistent lead times
- Strong OEM/ODM capability for volume and custom orders
- Reliable quality backed by international certifications
FAQs
How does the 38mm depth compare to the 25mm variant?
The 38mm depth provides significantly higher airflow (up to 165 CFM vs. approximately 54 CFM for the 8025 variant) and better static pressure performance, making it suitable for denser enclosures and greater thermal loads.
What DC voltages are available?
Standard models are available at 12V, 24V, and 48V. Custom voltage ranges are available on request.
Can a tachometer signal be added for speed monitoring?
Yes, tachometer (RPM) signal output is available on selected models. Please specify this when submitting your inquiry.
Do you support OEM orders?
Yes. We support customization of voltage, speed, bearing, lead wire, and packaging. Contact our sales team with your specifications.
What is the minimum order quantity?
MOQ varies by model and configuration. Please contact us directly for details.
Certifications and Quality Assurance
- UL Certification
- CE Certification
- RoHS Compliance
- 3C Certification (China Compulsory Certification)
Manufactured and tested at Hongbo Motor’s 6,000 m² facility in Ningbo, China.
More Details
Frame: Plastic(UL94V-O)
lmpeller: Plastic(UL94V-o)
Lead Wire: UL1007AWG#24
Equivalent(+)Red,(-)Black
Ball Bearing 50,000hrs(40°c)
sleeve Bearing 30,000hrs(40°c)
Operating temperature -10°C~+70°c
Storage temperature -40°C~+70°c
Model Parameter
| Mode | #Bearing Type |
Rated Voltage |
Qperating Voltage |
Input Current |
Input Power |
Speed | MaxAir Flow | Max Static Pressure |
Noise | Weigh | ||
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m³/min | Inch-H₂O | Pa | dB-A | g |
| DA08025#12U | B.S | 12 | 7.0-13.8 | 0.50 | 6.00 | 4000 | 54.14 | 1.53 | 0.25 | 62.37 | 40.00 | 58.00 |
| DA08025#12H | B.S | 12 | 7.0-13.8 | 0.40 | 4.80 | 3500 | 50.35 | 1.43 | 0.22 | 54.82 | 36.00 | 58.00 |
| DA08025#12M | B.S | 12 | 7.0-13.8 | 0.30 | 3.60 | 3000 | 39.98 | 1.13 | 0.14 | 34.81 | 31.00 | 58.00 |
| DA08025#12L | B.S | 12 | 7.0-13.8 | 0.20 | 2.40 | 2500 | 35.67 | 1.01 | 0.11 | 27.65 | 25.00 | 58.00 |
| DA08025#12D | B.S | 12 | 7.0-13.8 | 0.10 | 1.20 | 2000 | 27.39 | 0.78 | 0.07 | 18.14 | 22.00 | 58.00 |
| DA08025#24U | B.S | 24 | 14.0-27.6 | 0.40 | 9.60 | 4000 | 54.14 | 1.53 | 0.25 | 62.37 | 40.00 | 58.00 |
| DA08025#24H | B.S | 24 | 14.0-27.6 | 0.30 | 7.20 | 3500 | 50.35 | 1.43 | 0.22 | 54.82 | 36.00 | 58.00 |
| DA08025#24M | B.S | 24 | 14.0-27.6 | 0.20 | 4.80 | 3000 | 39.98 | 1.13 | 0.14 | 34.81 | 31.00 | 58.00 |
| DA08025#24L | B.S | 24 | 14.0-27.6 | 0.15 | 3.60 | 2500 | 35.67 | 1.01 | 0.11 | 27.65 | 25.00 | 58.00 |
| DA08025#24D | B.S | 24 | 28.0-56.0 | 0.10 | 2.40 | 2000 | 27.39 | 0.78 | 0.07 | 18.14 | 22.00 | 58.00 |
| DA08025#48U | B.S | 48 | 28.0-56.0 | 0.30 | 14.40 | 4000 | 54.14 | 1.53 | 0.25 | 62.37 | 40.00 | 58.00 |
| DA08025#48H | B.S | 48 | 28.0-56.0 | 0.25 | 12.00 | 3500 | 50.35 | 1.43 | 0.22 | 54.82 | 36.00 | 58.00 |
| DA08025#48M | B.S | 48 | 28.0-56.0 | 0.20 | 9.60 | 3000 | 39.98 | 1.13 | 0.14 | 34.81 | 31.00 | 58.00 |
| DA08025#48L | B.S | 48 | 28.0-56.0 | 0.15 | 7.20 | 2500 | 35.67 | 1.01 | 0.11 | 27.65 | 25.00 | 58.00 |
