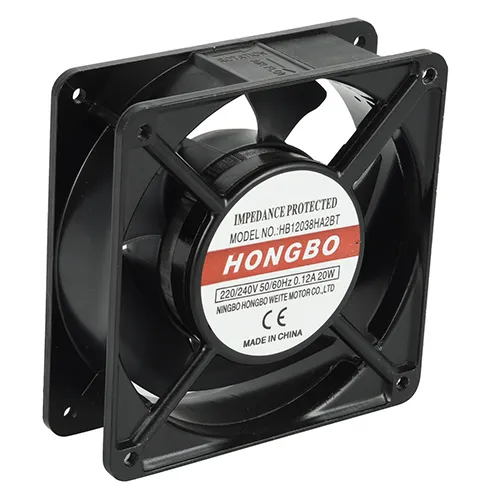

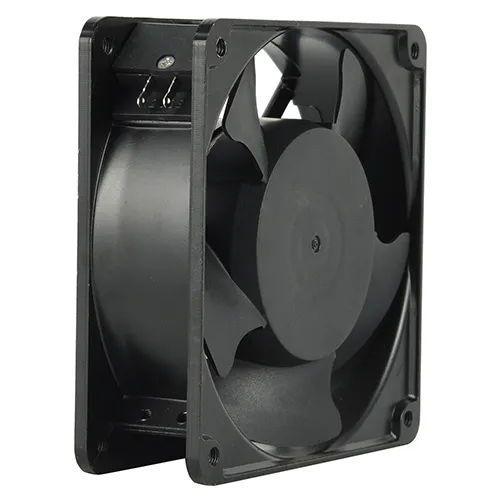

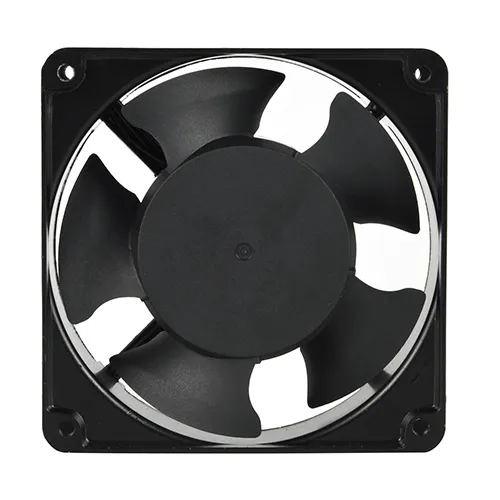

120×120×38mm AC Axial Fan | 12038 Industrial Cooling Fan
The Hongbo 12038 is a 120×120×38mm AC axial fan designed for high-volume airflow in industrial and commercial cooling applications. Delivering 122–162 m³/hr (72–95 CFM), this 120mm axial fan 12038 is built for continuous operation in control cabinets, electrical enclosures, and ventilation systems. It features an aluminum alloy frame and a shaded pole induction motor for reliable, long-term performance.
Key Features
- Aluminum Alloy Frame: Provides structural rigidity and resistance to deformation under sustained operation in industrial environments.
- High Airflow Output: Delivers 122–162 m³/hr (72–95 CFM), suitable for applications requiring consistent and forceful air movement.
- PBT Thermoplastic Impeller: Impeller material is UL94-V0 rated, offering flame resistance and dimensional stability.
- Dual Voltage Availability: Supports 110V and 220V AC (50/60Hz), compatible with equipment across multiple regions.
- Shaded Pole Induction Motor: Simple motor design with no brushes or commutators, reducing maintenance requirements.
- Ball and Sleeve Bearing Options: Ball bearing variant extends service life; sleeve bearing option available for cost-sensitive applications.
- Wide Operating Temperature: Rated for -10°C to +65°C, suitable for demanding thermal environments.
Products Categories
Get A Free Quote
Customization Options
Hongbo Motor supports OEM and ODM orders. Customization options for this 120×120×38mm AC axial fan include:
- Voltage: 110V, 220V, 380V, or dual-voltage configurations
- Bearing type: Ball bearing or sleeve bearing
- Lead wire: Length, gauge, and connector type adjusted to specification
- Speed grade: High, medium, or low speed variants available
- Mounting and labeling: Custom packaging, labels, and flange dimensions for OEM requirements
Contact us with your technical requirements for a tailored solution.
Specifications
| Parameter | Value |
|---|---|
| Size | 120 × 120 × 38 mm |
| Voltage | 110V / 220V AC (50/60Hz) |
| Airflow | 122–162 m³/hr (72–95 CFM) |
| Noise Level | 39–48 dBA |
| Weight | 480 g |
| Frame Material | Aluminum alloy |
| Impeller Material | PBT thermoplastic, UL94-V0 |
| Motor Type | Shaded pole induction motor |
| Bearing Type | Ball bearing / Sleeve bearing |
| Terminal | 0.5 mm |
| Lead Wire | AWG#22 UL 1007 (optional) |
| Operating Temperature | -10°C to +65°C |
Applications
This 120mm axial fan 12038 is widely used in:
- Electrical control cabinets: Maintains safe operating temperatures for switchgear, PLCs, and control components.
- Industrial enclosures: Provides continuous ventilation in sealed or partially sealed housings.
- Power supply cooling: Supports thermal management in UPS systems and power conversion equipment.
- Telecommunications equipment: Used in base stations and network racks where compact, reliable fans are required.
- Refrigeration and HVAC systems: Assists in condenser and evaporator airflow within commercial refrigeration units.
- Automation and robotics systems: Keeps servo drives and motion control hardware within operating temperature limits.
Why Choose Hongbo Motor
- Over 10 years of focused experience in industrial cooling fan manufacturing
- Products exported to 40+ countries across North America, South America, Europe, and Asia
- Stable production capacity with consistent lead times
- Strong OEM/ODM capability for volume and custom orders
- Reliable quality backed by international certifications
FAQs
What is the primary application of the AC 12038 fan?
This fan is used for cooling in industrial control cabinets, electrical enclosures, power supply systems, and ventilation equipment requiring a 120mm footprint with higher airflow depth.
What voltage options are available?
Standard models are available at 110V and 220V (50/60Hz). 380V and dual-voltage configurations can be arranged as custom orders.
What is the difference between the ball bearing and sleeve bearing options?
Ball bearing models offer a longer rated service life and better performance in high-temperature environments. Sleeve bearing models are a cost-effective option for standard-duty applications.
Do you support OEM orders?
Yes. We support customization of voltage, bearing type, lead wire, speed, and packaging. Please contact our sales team with your specifications and volume requirements.
What is the minimum order quantity?
MOQ varies by model and configuration. Contact us directly for details based on your requirements.
Certifications and Quality Assurance
All Hongbo Motor products are manufactured in compliance with international quality and safety standards:
- UL Certification
- CE Certification
- RoHS Compliance
- 3C Certification (China Compulsory Certification)
Production follows strict in-process and outgoing quality controls at our 6,000 m² facility in Ningbo, China.
More Details
Size:120mmx120mmx38mm
Airflow:122~162m3/hr 72-95CFM
Weight:480g
Noise:39~48dBA
Impeller:PBT Thermoplastic Black,UL94-V0
Frame:Aluminum Alloy
Terminals:0.5mm
Lead Wire:A WG#22 UL 1007(Optional)
Motor:Shaded Pole Induction Motor
Operation Temperature:- 10C~+65℃
Model Parameter
| Model | Bearing System | Voltage VAC | Rreq. Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow | Phase | Capcitor | |
| M3/hr | CFM | ||||||||||
| HB12038HA1B（S)-7P | Ball/Sleeve | 100~125 | 50/60 | 0.22/0.18 | 21/18 | 2600/3000 | 43/48 | 138/162 | 82/95 | 1 | / |
| HB12038HA2B（S)-7P | Ball/Sleeve | 200~240 | 50/60 | 0.14/0.12 | 21/18 | 2600/3000 | 43/48 | 138/162 | 82/95 | 1 | / |
| HB12038HA3B（S)-7P | Ball/Sleeve | 380 | 50/60 | 0.09/0.07 | 21/18 | 2600/3000 | 39/44 | 138/162 | 82/95 | 1 | / |
